External Group Metering

An intelligent and innovative external group metering system, that is now available through Electrical Meter Frames.

It's flexible design offers the ability to configure it for most metering requirements, and with a variety of internal components and accessories, we can provide a solution fast.

The tier based system means enclosures of any size can be consructed quickly and consistently to suit both Group Metering and Current Transformer (CT) Metering.



  • Outdoor, weatherproof - IP55
  • Constructed from Electrogalv steel
    • External Metalwork – 1.2mm
    • Doors – 1.6mm
    • Internal Metalwork – 1.6mm
    • Separator Plates – 1.2mm
  • Polyester, corrosion resistant powder coat finish
  • Neutral RAL7032 colour
  • 3 point locking system
  • Door stay
  • Gland plates for bottom entry/exit of cables
  • Double hinged, removable metering panels
  • Anti-tamper, Authority sealing facility for internal doors and metering panels
  • Ventilated louvers fitted with removable filter media
  • Dimensions (mm)
    • Height – 2025 (incl. plinth)
    • Width – 700 (per tier)
    • Depth – 495 (incl. handle)

  • Internal module heights are in multiples of 325mm

Packed with features and accessories for fast, flexible solutions

Dimensions

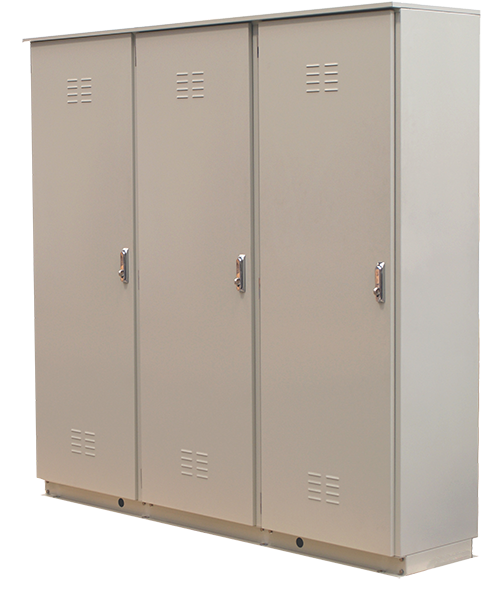

External View

Internal View
